Telemetry Tracking Antennas

Safran Data Systems, Inc. offers a complete range of fixed and mobile antenna products to answer every need of telemetry reception, from lightweight COMTRACK up to 9 meter SPARTE antennas, associated with flexible Radio-Frequency Feeds.

COMTRACK

COMTRACK, a Single Axis Compact Tracking Antenna

COMTRACK is the choice of trust, simplicity and performance of more than 100 telemetry tracking operators. Military aircraft testing, helicopters, commercial aircraft and even launch vehicles: COMTRACK is an affordable telemetry reception extension where a roomy and cumbersome parabolic system wouldn’t fit. With its very compact and environmentally-rugged form-factor, the embedded phase array auto tracking antenna offers telemetry reception in L, S or C-band from zenith up to 150 kms range. Its smart integration combining high elevation reception and long range under a single protective radome also enables dual-band mountings for systems having to operate in today’s and tomorrow’s frequencies.
DATASHEET CONTACT US

Fixed & Rotary Wing

Missile Testing

Mobile Stations

COMTRACK Product Features
L/S/C BANDS

Single band L, S or C Dual Band L+S, L+C or S+C

AUTO & SLAVE TRACKING

High Tracking Accuracy and Long Range Tracking, GPS Tracking made easy

TRANSPORTABLE

Lightweight (84lbs) & Small Size, Easy on-truck setup

COST-EFFECTIVE

Simple and robust mechanics for high performance with limited maintenance

ENVIRONMENT PROOF

Full Radome Protection against rain, sand, dust

SPARTE 300

SPARTE 300, a Tracking Antenna from 6 to 10 ft

The SPARTE 300 series is a dual-axis antenna covering dish size from 6, 8 up to 10 feet. The SPARTE 300 series antenna is a field and time proven product delivered to customers for mission-critical applications where the telemetry reception is at stake. This robust antenna ensures to our customers highly accurate operations, as well as a long lifetime and simple maintenance tasks. The Additionally, the numerous and customizable I/Os provide users with the ability to operate the antenna in a multi-site tracking fashion, with master-slave communications between smaller and larger models. SPARTE 300 can easily be installed on a road trailer that converts the antenna into a mobile version with very short set-up time. It can also be delivered as a shipborne version to secure an accurate tracking at sea.
DATASHEET CONTACT US

Fixed & Rotary Wing

Missile Testing

Launch Vehicle Telemetry

SPARTE 300 Product Features
BEST-IN-CLASS SERVO CONTROLS

Direct Drives, User Selectable, Servo Algorithms

SCM 1000 HZ SCAN RATE

Common Design for Main Feed & ACQ-AID Feed

C-BAND FIELD UPGRADABLE

Simple Add-On without any Structural Change

EASY MAINTENANCE

Easily Accessible Electronics & Mechanics Above Az

SHIPBORNE READY

IMU Add-On for Shipborne Operations

SPARTE 500

SPARTE 500, a Tracking Antenna from 15 to 18 ft

The SPARTE 500 series is a dual-axis antenna covering dish size from 15 to 18 feet. The SPARTE 500 is a field and time proven product delivered to customers for mission-critical applications. Widely used across world test ranges, the SPARTE 500 series antennas meet the most demanding flight test profiles, for long range aircraft flight tests, as well as for missiles and launch vehicles. Its lean design and ease of operations make it a perfect match for any ground test range, as a complement to smaller range trackers. Wherever telemetry tracking and reception matters, the SPARTE 500 series antennas make the difference: high performance, in-the-field upgrade-ability to C-band support, skid or trailer–mounted mobility, and even 3-axis shipborne versions.
DATASHEET CONTACT US

Fixed & Rotary Wing

Missile Testing

Launch Vehicle Telemetry

SPARTE 500 Product Features
BEST-IN-CLASS SERVO CONTROLS

Direct Drives, User Selectable, Servo Algorithms

SCM 1000 HZ SCAN RATE

Common Design for Main Feed & ACQ-AID Feed

C-BAND FIELD UPGRADABLE

Simple Add-On without any Structural Change

FIELD PROVEN

Robust Pedestal in Operations at Test Sites for Decades

TRANSPORT ADAPTABLE

Skid- or Trailer-Mounted Versions

SPARTE 700

SPARTE 700, a Tracking Antenna from 20 to 24 ft

The SPARTE 700 series is a dual-axis antenna covering dish size from 20 to 24 feet. Any flying target such as aircraft or space launching vehicles will be accurately tracked thanks to the high gain of this large aperture antenna. The very robust and solid design of the SPARTE 700 series ensures the best performance in any situation: aluminum alloy reflector for increased surface accuracy, SCM tracking feeds for reliable and accurate tracking, dual drive for motors redundancy and no-backlash… And for the ever most demanding applications, the SPARTE 700 series also exists in skid-mounted transportable and 3-axis gyro-stabilized versions.
DATASHEET CONTACT US

Fixed & Rotary Wing

Missile Testing

Launch Vehicle Telemetry

SPARTE 700 Product Features
BEST-IN-CLASS SERVO CONTROLS

Direct Drives, User Selectable, Servo Algorithms

SCM 1000 HZ SCAN RATE

Common Design for Main Feed & ACQ-AID Feed

C-BAND FIELD UPGRADABLE

Simple Add-On without any Structural Change

DUAL DRIVES

Uninterrupted Operations, No Backlash

TRANSPORT ADAPTABLE

Skid-Mounted Version

L/S/C Tri-Band Feed

L/S/C Tri-Band Feed, C-Band Without Compromise

The patented miniaturized L/S/C Tri-Band Feed offers the best match for performance, flexibility. Common L/S/C radiating front end fitted with a modular set of active RF modules allow simultaneous reception and tracking in any frequency band, whereas a small and light-weight enclosure makes the feed mountable on any dishes from 6 feet to 24 feet. Proposed in any single, dual or tri-band configuration the feed offers the best value for money and flexibility to customers willing to meet current requirements while keeping future in mind. Field upgradable to any missing band with simple RF modules addition ensures your capacities are scalable and your costs under control.
DATASHEET CONTACT US

Fixed & Rotary Wing

Missile Testing

Launch Vehicle Telemetry

L/S/C Tri-Band Feed Product Features
LTE/4G MITIGATION

DLTE/4G, WCS & Customized Rejection Filters

SCM 1000 HZ SCAN RATE

Common Design for Main Feed & ACQ-AID Feed

C-BAND FIELD UPGRADABLE

Simple Add-On without any Structural Change

FOCUS ON INTEGRATION

Tri-Band even with Dishes as Small as 6 feet

NO RF BAND COMPROMISE

Concentric 3-Band Feed, without need of Dichroic Filter

Associated News

Safran supplies SPARTE 700 Telemetry Antenna to the U.S. Air Force

Press Release

February 2, 2022

Learn More

Safran expands its engineering, assembly and testing center for flight testing and satellite stations and antennas

News

February 11, 2020

Learn More

Associated Videos

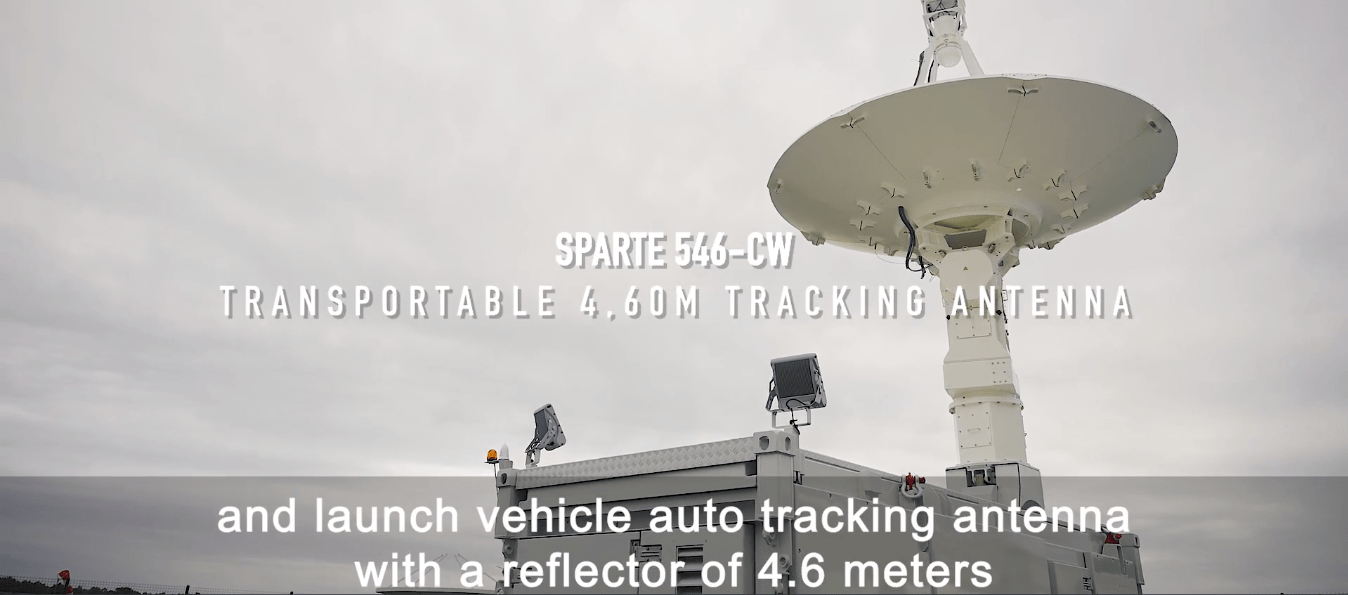

Sparte 546-CW: a Transportable 4.60 meters / 15.09 ft Tracking Antenna
