HEIM Data Acquisition Units

HEIM provides scalable highly customizable Data Acquisition Units (DAQ) for flight tests.

XMA

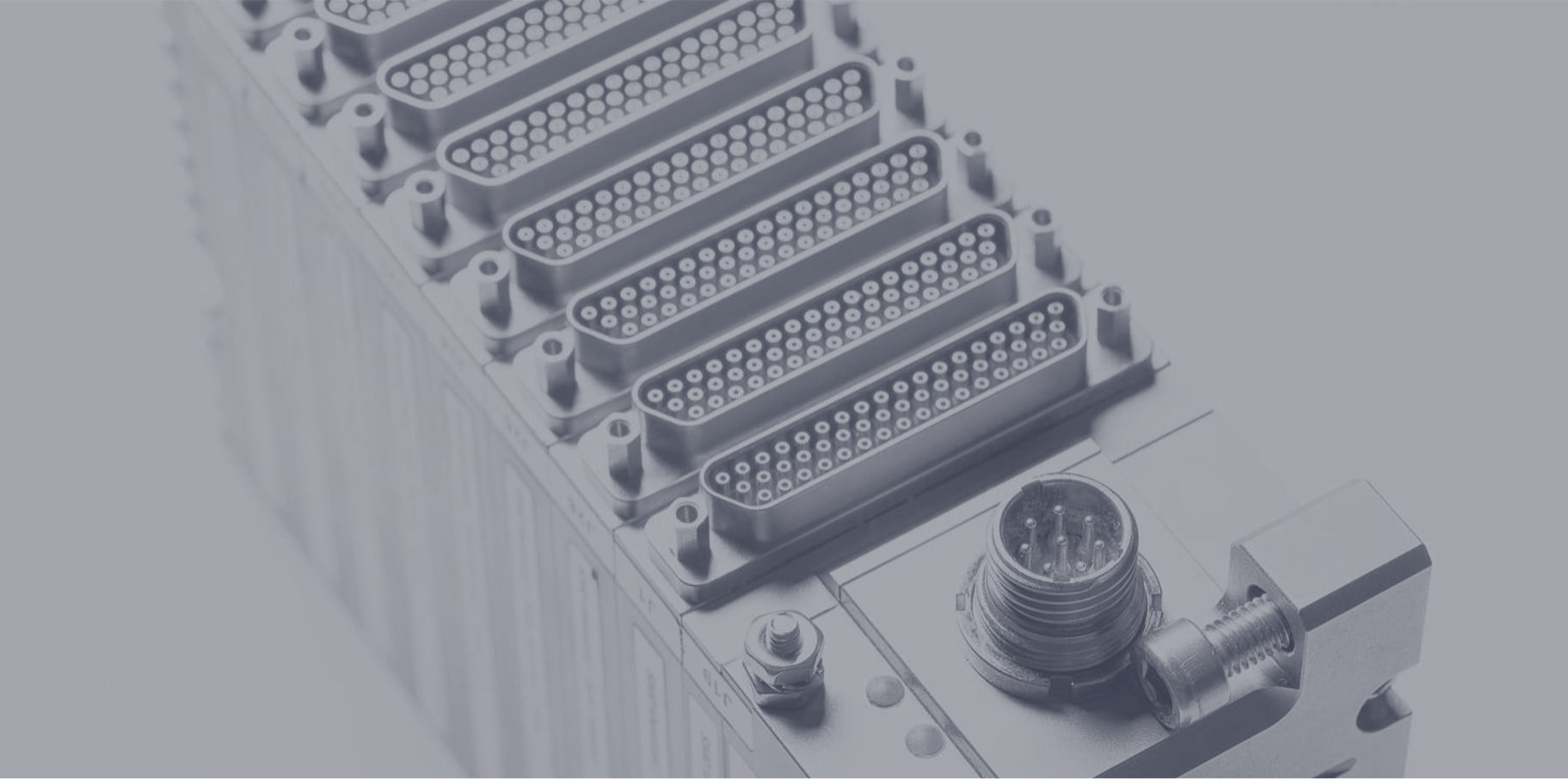

XMA, a Compact & Remote Data Acquisition Unit

With its small and high ruggedized design, XMA is the best fit for remote data acquisitions in harsh and small space areas. It is the perfect candidate for network telemetry applications and remote acquisitions, to reduce the wire intrusiveness, and acquire the data closer to the sensors. XMA also allows data recording, data processing, GPS localization and data transmission. XMA has the smallest size/channel types ratio, and proposes optimized module set for a large number of data type acquisitions, with state-of-the-art accuracy.
DATASHEET CONTACT US

Aircraft

Helicopter

UAVs Flying Taxis

XMA Product Features
DESIGNED FOR HARSH ENVIRONMENT

-50°C / +105°C, waterproof, shocks, vibration, lightning, EMI/EMC

ULTRA COMPACT & GENERIC

Generic analog module, 2×3’’ / 51×76 mm, from 1 to 16 modules per stack

BEST DATA EVER – HIGH DATA RATE

500 ppm in extreme temperature range

INET READY

UDP communication, IEEE1588 synchronization, SNMP

EASY TO CONFIGURE

eZ software suite, XML schema (MDL)

MULTI FORMAT OUTPUT STREAM

PCM Chapter 4, Chapter 7, Chapter 10, UDP, IENA, DAR

XMA-ROTOR

XMA-ROTOR, a Full Wireless Modular Acquisition System for Helicopter Rotor Heads

The XMA-ROTOR proposes high performance modules technology built in a mechanical housing dedicated to helicopter rotor head instrumentation. The XMA-ROTOR replaces legacy slip ring technology offering a full wireless/contactless link between the rotor and the stator. Power is transferred via inductive coupling. Acquired data, health monitoring information, configuration data and synchronization signals are transferred over a bi-directional radio link architecture.
DATASHEET CONTACT US

Civil Helicopter

Military Helicopter

XMA-ROTOR Product Features
FULLY WIRELESS No slip ring, low intrusive and maintenance-free technology

No slip ring, low intrusive and maintenance-free technology

SCALABLE

Up to 120 strain gages or accelerometers, or 240 temperatures or any combinations

HIGH ACCURACY

Low uncertainty down to 200ppm Typical and high synchronization lower than 100ns

EASY TO CONFIGURE

Configured and managed remotely by the eZ Software Suite

HARSH ENVIRONMENTS

Built to sustain up to 2500 rpm without additional bracket

HIGH EFFICIENCY WIRELESS POWER

Low EMI pollution and permanent health monitoring

Over the past three years, Airbus Helicopters and Safran Data Systems have worked closely to leverage flight test innovation for the Rapid and Cost-Effective Rotorcraft (RACER) program, a high-speed, high-efficiency helicopter demonstrator. It will be equipped with the XMA-ROTOR in the frame of HIRIS (Helicopter Innovative Rotating Instrumentation System) rotating wing instrumentation data acquisition system. RACER is funded by the European Commission’s H2020 research program, as part of Clean Sky 2.

XMA-BOX

XMA-BOX, a Multiple Channel Data Acquisition Unit

The XMA-BOX proposes high performance XMA modules technology in a cost effective 1U case. The XMA-BOX allows data acquisition of analog and digital signal and their processing and streaming in various instrumentation data format. Ideal for ground testing facilities, the XMA-BOX is also designed to cope with environmental conditions of small to large civil aircraft cabin. The XMA-BOX is the best fit for multiple data acquisition needs, as a single box or integrated in a larger FTI system all by ensuring state-of-the-art accuracy.
DATASHEET CONTACT US

Business Jet

Commercial & Freight Aircraft

Aerospace Ground Testing

XMA-BOX Product Features
XMA PERFORMANCE, SIMPLE HARDWARE

Provide XMA systems analog performance and functionalities in a cost-effective package

MULTI HARDWARE CONFIGURATIONS

Full analog, Full ARINC 429, or digital buses: RS, MIL-STD, AFDX, CAN, Discrete

MULTI-FORMAT OUTPUT STREAM

Ethernet output (IENA or IRIG 106 UDP Chapter 10), PCM IRIG 106 Chapter 4 output

EASY TO CONFIGURE

Assisted and faster configuration through Ethernet or USB

SYSTEM INTEGRATION

Standalone or integrated in a full network system along with XMA devices

MOUNTING KIT CAPABILITY

19” rack-mouting kit including brackets and screws

Over the past three years, Airbus Helicopters and Safran Data Systems have worked closely to leverage flight test innovation for the Rapid and Cost-Effective Rotorcraft (RACER) program, a high-speed, high-efficiency helicopter demonstrator. It will be equipped with the XMA-ROTOR in the frame of HIRIS (Helicopter Innovative Rotating Instrumentation System) rotating wing instrumentation data acquisition system. RACER is funded by the European Commission’s H2020 research program, as part of Clean Sky 2.
